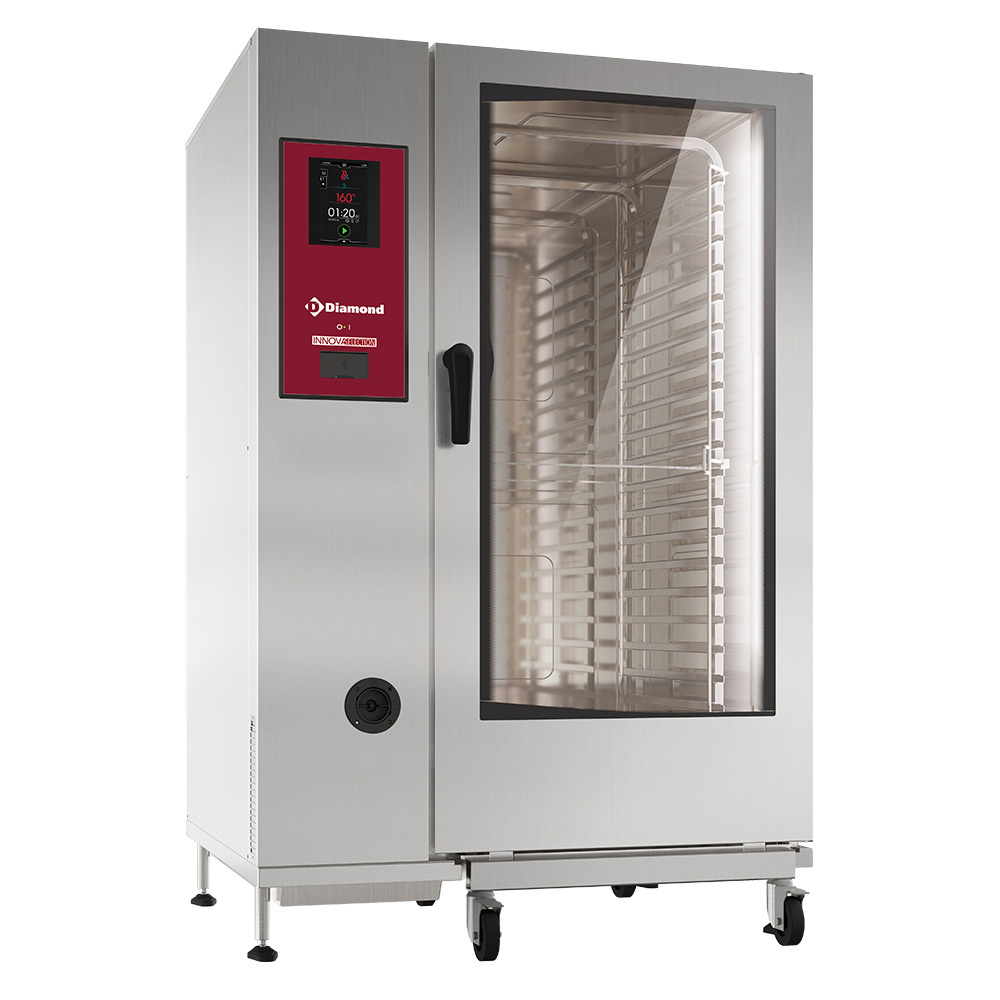

Gas oven « TOUCH » direct steam and convection 22xGN2/1+ Cleaning

Description

Oven loading of GN 2/1 (or GN 1/1) plates.
Load capacity 200Kg.
1 transfer trolley and 1 removable loader with 63mm « anti-tipping ».
Core temperature probe.
Trolley and loader 600×400 EURONORM (on request ref: AC/2P2…).
Bottom closing plate integrated in the door.
Adjustable stainless steel feet.
NB: delivered without grids and without GN plates.

Inner and outer construction in stainless steel AISI 304, thermal insulation in ceramic fiber, control panel with stainless steel filter, preventing soiling of the components (ventilated panel), stainless steel feet. Cooking chamber: fully welded, completely watertight, rounded corners and edges without any roughness. Sealing gasket fixed on the front of the cooking chamber. Double-drawn bottom that separates condensation from the grease towards the drain. Standard steam condenser reducing the temperature of the condensate at the drain and limiting the steam outlet when the door is opened. Easily removable platinum door structure. Easily removable heat diffusers. Large motorized door allowing all types of cooking. Unique design of the enclosure coupled with a side fan in AISI 304 stainless steel (CCRR), guarantees uniform heat management and distribution.
Double-glazed door: ergonomic and athermal handle, automatic closing with safety device to prevent accidental opening, condensate recovery unit integrated in the door, interior window mounted on hinges for easy cleaning and perfect hygiene. Air circulation between the glass panels guarantees better thermal insulation. Microswitch to stop the fan when opening. Gas heating: by pulsed burners and grooved heat exchangers (increased efficiency and saving up to 20% in gas consumption and reducing harmful emissions by 20%), steam by nebulizer. TOUCH SCREEN control panel with front accessibility, easy and fast service, IPx5 protection rating (against water jets with a hose).

Optional: Communication module for oven & « TOUCH » cell (see: AC/CMAF-X)
